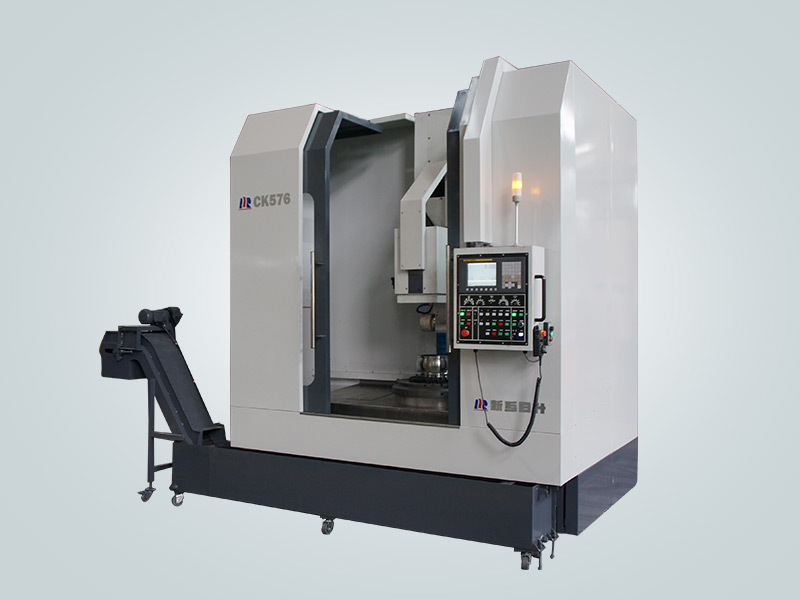

CK576 CNC vertical lathe
Category:
Description
CK576
CNC vertical lathe
Main technical parameters:
Table diameter Ф 600mm
Maximum processing diameter Ф 600mm
Maximum workpiece height 500mm
Working table speed range 5-500 r/min
X-axis/Z-axis travel 500/400mm
Machine tool accuracy: machine tool spindle accuracy (1) table radial runout: 0.003mm;(2) table end face runout: 0.003mm;
Machine position accuracy (1) positioning accuracy X axis: ± 0.008mm;Z axis ± 0.008mm;
(2) Repeated positioning accuracy X axis: ± 0.005mm;Z axis: ± 0.005mm;
Typical parts machining accuracy: dimensional accuracy: IT6; surface roughness: Ra0.6μm;
Main structural features:
1. The machine tool feed axis adopts high precision ball screw and large size high rigidity roller linear guide, so that the machine tool has the characteristics of high precision and high rigidity.
2. The machine tool adopts vertical layout structure and is equipped with a five-station electric tool table, which can realize automatic tool change processing.
3. The spindle adopts patented technology, high rotation accuracy
4. The whole machine adopts inverted T structure layout
