2m84100b-duplex-grinder
Category:
Description
Main technical parameters:
|
Grinding wheel size (mm) |
980*370*55(CBN Thickness 5mm) |
|
Max. Diameter of workpiece (mm) |
330 |
|
Motor power of upper plate (kw) |
7.5 |
|
RMP of upper plate (r/min) |
5~50 |
|
Motor power of lower plate (kw) |
7.5 |
|
RMP of lower plate (r/min) |
5~50 |
|
Motor power of inner ring (kw) |
3 |
|
RMP of inner ring(r/min) |
5~40 |
|
Inlet pressure(MPa) |
0.6 |
|
Machine overall dimension L*B*H (mm) |
3060*2290*2590 |
|
Machine weight (kg) |
5000 |
|
Typical workpiece |
AC compressor valve block |
|
Parallelism (mm) |
0.001 |
|
Flatness (mm) |
0.001 |
|
Equal altitudes (mm) |
0.002 |
|
Surface roughness |
Ra 0.2μm |
Product description:
Application area:

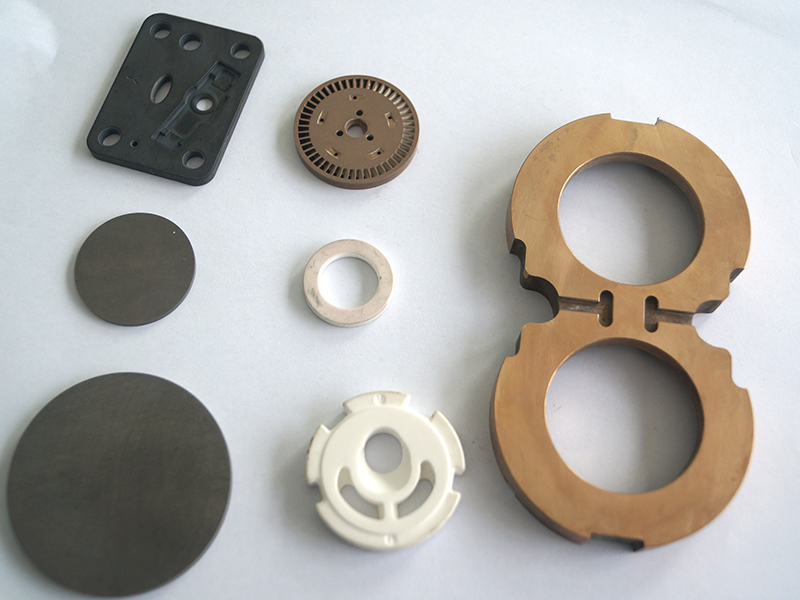

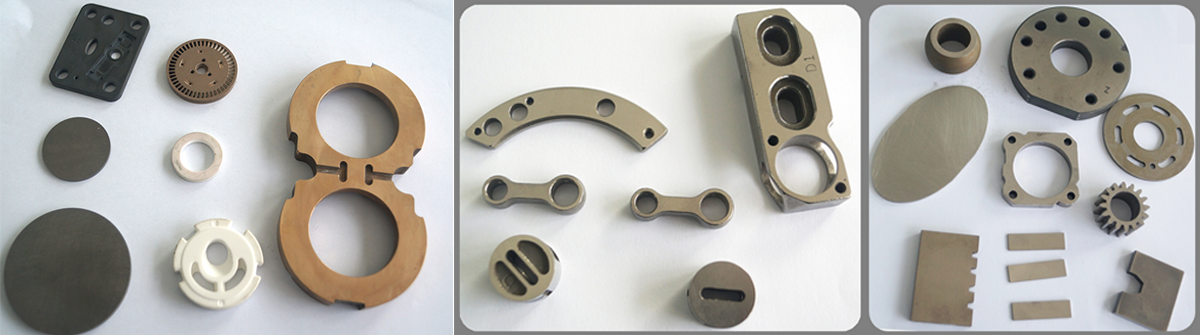

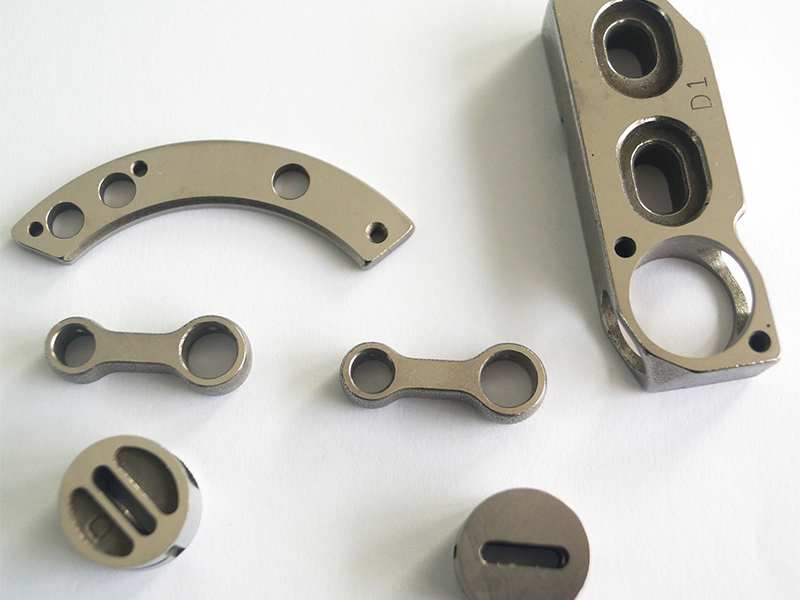

It’s suitable for parts plane grinding in batches. Application of double side grinding in hydraulic pneumatic components,hydraulic motor parts, car steering pump parts, refrigeration compressor parts,oil pump and oil mouth parts, engine parts, high precision bearings, seals, piston rings,measuring tools, mold, instrument, carbide blade, ceramics, monocrystalline silicon piece,magnetic materials and other products.
