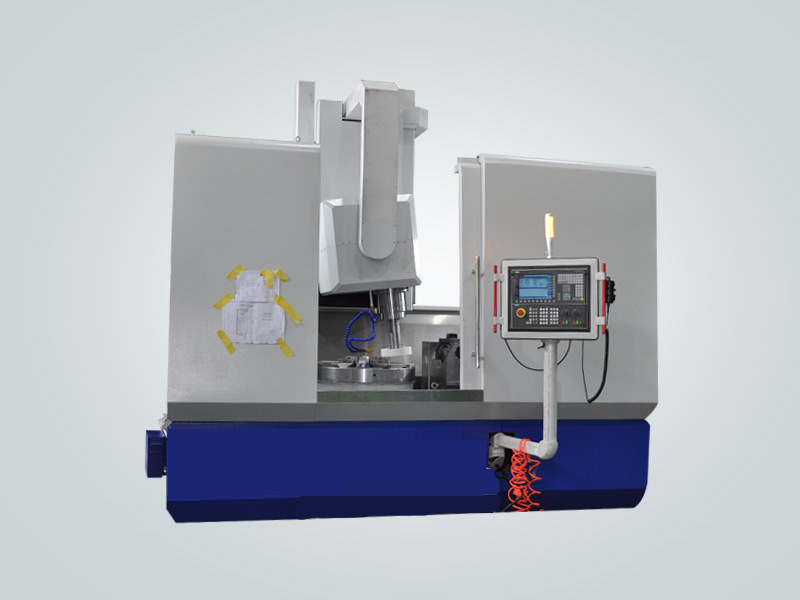

2MKG9580 CNC Vertical Compound Grinder
Category:
Description
2MKG9580ATC
CNC vertical compound grinding machine
Main technical parameters:
Maximum grinding excircle: Ф 800mm
Minimum grinding inner circle: Ф 60mm
Can be installed processing height: 450mm
Table diameter: Ф 800mm
Maximum load of workbench 1000Kg
Machine accuracy:
1. Worktable spindle rotation accuracy:
(1) Radial runout of worktable spindle: 0.002mm;(2) Axial runout of worktable spindle: 0.002mm
2. Positioning accuracy of X and Z axes: ± 0.008mm; Repeated positioning accuracy: 0.005mm;
Typical parts machining accuracy:
1. Surface roughness:
Main structural features:
1. The feed drive part of the machine tool uses a servo motor directly connected to a high-rigidity ball screw, and is equipped with a Heidelhain high-precision grating ruler, which has high feed accuracy and good stability. X/Z axis adopts heavy load roller type line rail, bearing large.
2. The turret is equipped with Heidelhain's angle encoder, which has high rotation accuracy. The turret is equipped with double grinding heads. The horizontal grinding head spindle is a mechanical shaft, with good rigidity, high precision and good surface roughness of the grinding workpiece. The vertical grinding head spindle is an electric spindle with replaceable grinding wheel. HSK taper handle is positioned on both sides, with high repeated positioning accuracy, convenient grinding wheel change and high grinding efficiency.
3. With automatic grinding wheel exchange device, 3 large grinding wheels and 3 small grinding wheels can be placed.
4. The machine adopts semi-closed casing, which is safe and reliable, and can prevent cutting fluid from splashing and pollution, and achieve effective recovery of grinding fluid.
