MB4363C Semi-automatic double-sided grinding machine


High-strength cast iron machine bed

Category:


Main technical parameters:

Size of grinding wheel or plate (mm)

630*305*50(60)

Max. Diameter of workpiece*length (cylinder shape) (mm)

100*160

Max. Diameter of workpiece*height (discoid shape) (mm)

160*100

Motor power of upper plate (kw)

4

RMP of upper plate (r/min)

10~120

Motor power of lower plate (kw)

5.5

RMP of lower plate (r/min)

10~120

Motor power of inner ring (kw)

3

RMP of inner ring (r/min)

5~40

Machine overall dimension L*B*H(mm)

2600*2400*2200

Machine weight (kg)

4200

Product structural features:

High-strength cast iron machine bed

Single eccentric mechanism

Free rotation of upper arm

Guide mechanism

Three independently adjustable motors

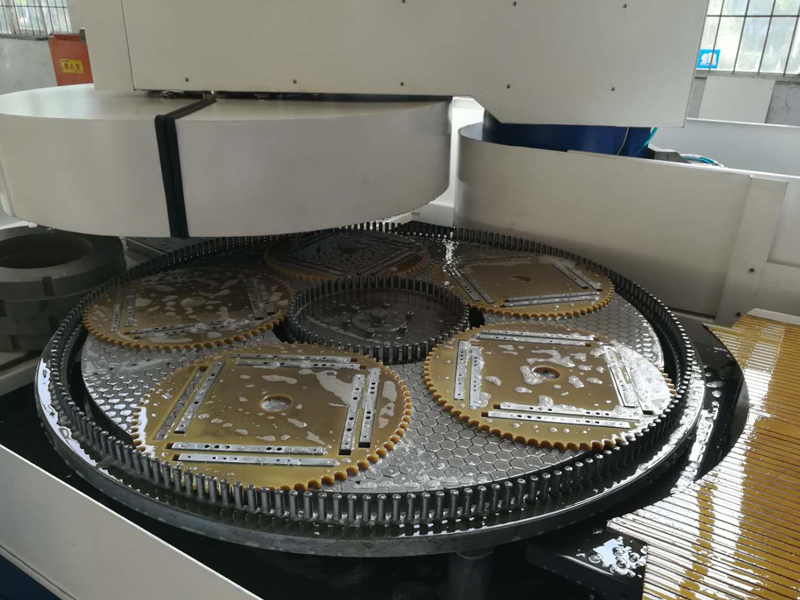

Planetary machanism

Could processing approximated zero pressure

Could supply wheel plate/ cast iron plate

Hydraulic pressure dresser
