MB43100C Semi-automatic double-sided grinding machine
Category:
Description
Main technical parameters:
|
Size of grinding wheel or plate (mm) |
1000*450*70 |
|
Max. Diameter of workpiece*length (cylinder shape) (mm) |
275*70 |
|
Motor power of upper plate (kw) |
7.5 |
|
RMP of upper plate (r/min) |
5~50 |
|
Motor power of lower plate (kw) |
7.5 |
|
RMP of lower plate (r/min) |
5~50 |
|
Motor power of inner ring (kw) |
3 |
|
RMP of inner ring (r/min) |
5~40 |
|
Inlet pressure |
0.6MPa |
|
Machine overall dimension L*B*H(mm) |
2710*2730*2760 |
|
Machine weight (kg) |
6000 |
Product structural features:
High-strength cast iron machine bed
Mechanical dresser
Main spindle big diameter thrust bearing
With wheel dressing loop
Upper lower plate and inner loop independent frequency control
HMI control
Three stage pressure pneumatic control, automatic conversion

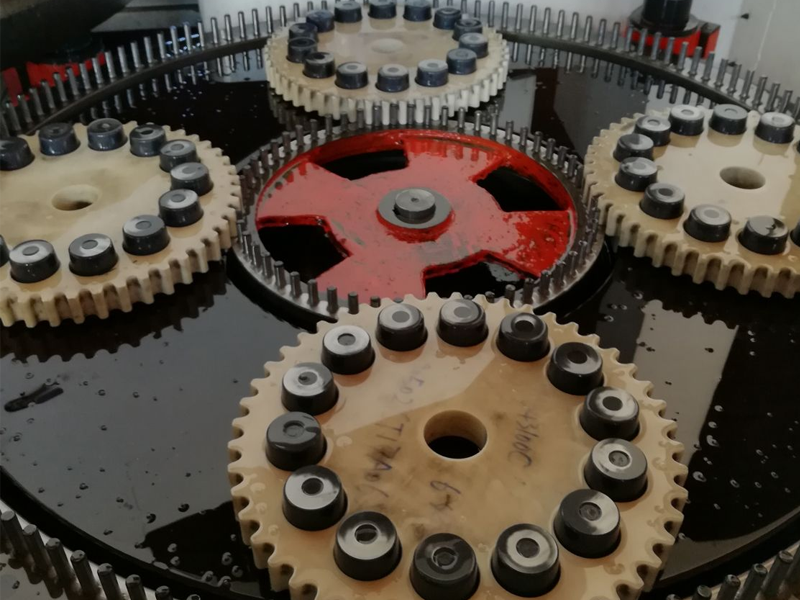

Planetary machanism
