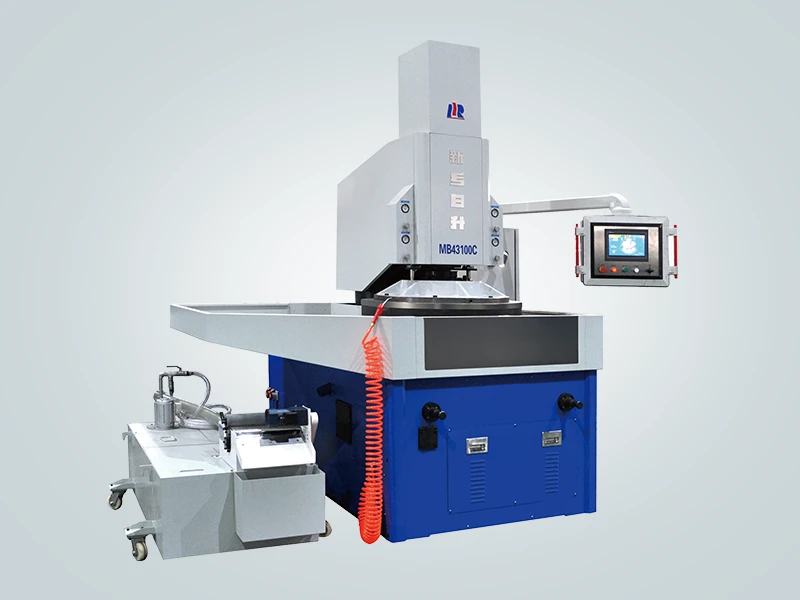

MB43100C double-sided grinding bed
Category:
Description
Application areas
It is suitable for double-end precision grinding of precision bearings, rollers, reducers and other parts.
Machine features
1. High strength cast iron bed and swing arm system.
2. The fault self-diagnosis system is convenient to find the cause and quickly solve the abnormality.
3. Mechanical grinding wheel dresser.
4. Man-machine interface control.
5. Three-stage pressure and speed setting.
6. The sand wheel has fixed and floating functions.
7. The upper and lower grinding wheel discs have the function of staggering the research.
8. The outer ring automatically lifts, which is convenient and quick.
Main technical parameters
| Size of grinding wheel disc | 1000 × 450 × 70mm (CBN thickness is 5) |
| Maximum machining diameter | 275mm |
| Maximum machining height | 70mm |
| Upper power | 7.5kW |
| Speed range | 5 ~ 60r/min |
| Lower disk power | 3kW |
| Speed range | 5 ~ 40v |
| inner loop power | 3 kW |
| Speed range | 5 ~ 40r/min |
| Machine tool inlet pressure | 0.6MPa |
| External dimensions of machine tool | 3035x2240x2720 |
| Machine weight (kg) | 6300 |
Keyword：
MB43100C Duplex grinder
