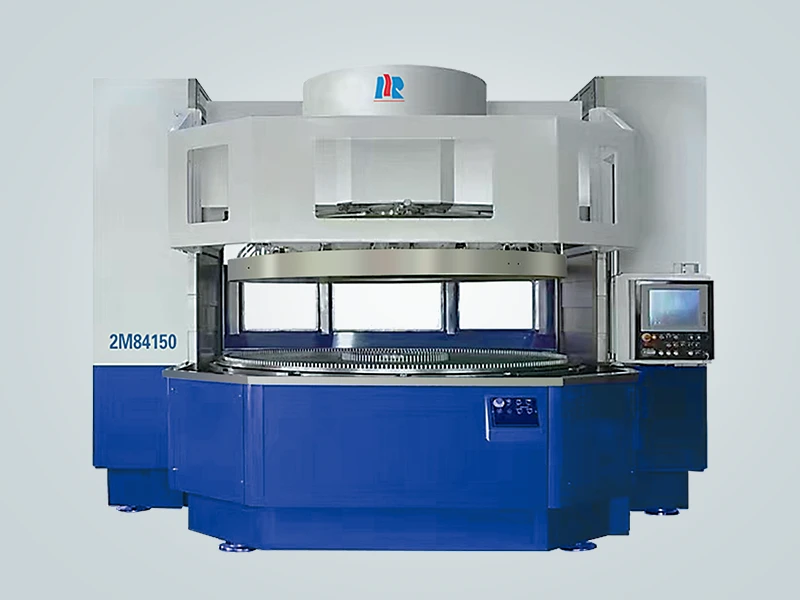

2M84150 double-sided grinding machine
Category:
Description
Application areas
Suitable for grinding the plane of the part. It is suitable for grinding different parts such as steel, cast iron, hard alloy, ceramics, etc. It is widely used in bearing factory, oil pump nozzle factory, diesel engine factory, power machine factory, measuring tool and tool factory, electrical appliance factory, mold factory and instrument factory.
Machine features
1. High-strength cast iron bed
2. Mechanical trimmer
3. Large shaft diameter thrust bearing of main shaft
4. Equipped with grinding wheel dressing ring
5. Independent frequency conversion speed regulation for upper and lower plates and inner ring
6. Man-machine interface control
7, three pressure pneumatic control, automatic conversion
8. Planetary mechanism
Main technical parameters
| Size of grinding wheel disc | 1456 × 480 × 55mm (CBN thickness is 5) |
| Maximum machining diameter | 435mm |
| Maximum machining height | 200mm |
| Upper power | 25kW |
| Speed range | 5 ~ 60r/min |
| Lower disk power | 25 kW |
| Speed range | 5 ~ 60r/min |
| inner loop power | 7.5 kW |
| Speed range | 5 ~ 30r/min |
| Machine tool inlet pressure | 0.6MPa |
| External dimensions of machine tool | 3200x2720x2800 |
| Machine weight (kg) | 9000 |
Keyword：
2M84150 Duplex grinder
