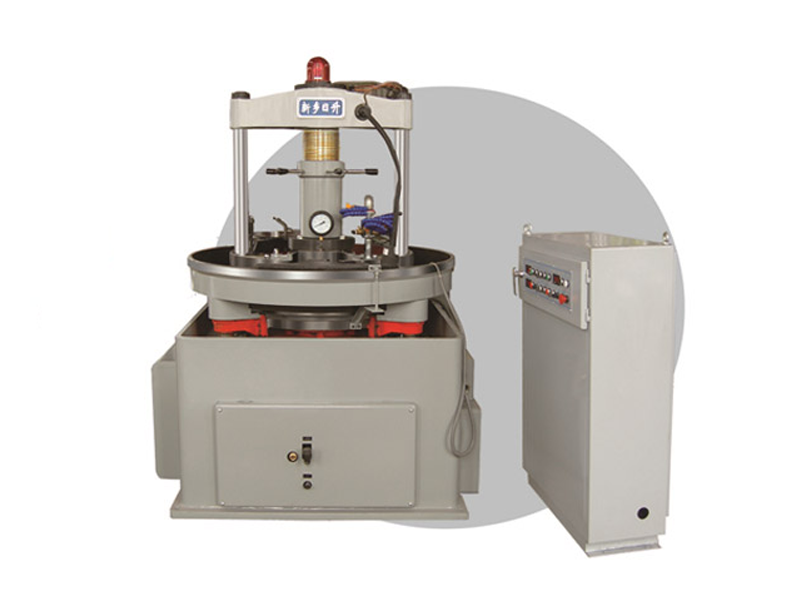

3M7266 Vertical steel ball lapping machine
Hydraulic drive pressure, mechanical pressure preservation by compression spring and constant pressure nut locking.
Category:
Description
Main technical parameters:
| Items and specifications | Parameters |
| Working range | φ 2~ φ 12.7mm |
| Dimension of plates | ODφ660×IDφ420×W80mm |
| Speed of main shaft | 10~50 r/min (frequency conversion) |
| Ball load capacity | 120kg |
| Main motor power | 4kW |
Product structural features:
1.Vertical layout, large cycle machining;
2.Suitable for the finishing lapping process;
3.The rotation of main shaft and turntable adopt frequency conversion speed regulation;
4.Hydraulic drive pressure, mechanical pressure preservation by compression spring and constant pressure nut locking;
5.Adopt small cycle processing in accordance with the requirements (without turntable).
