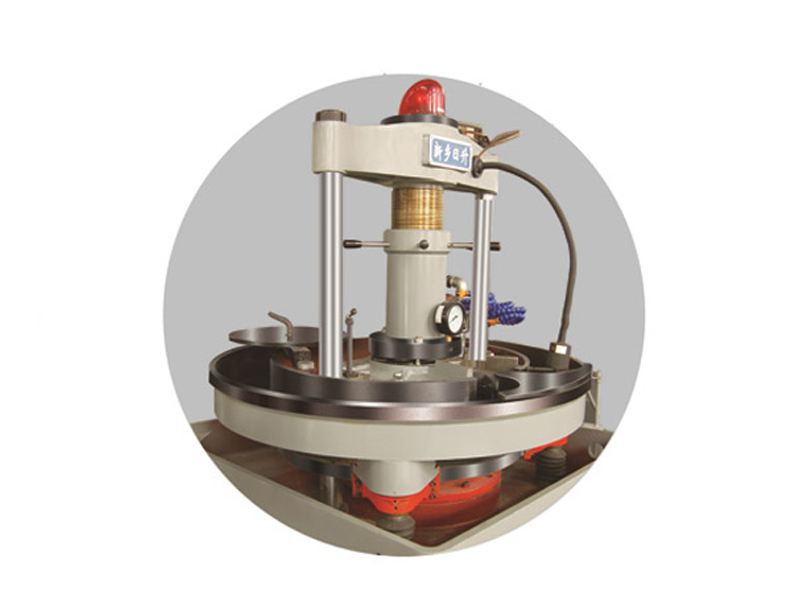

3M7166 Vertical steel ball grinding machine
Adopt small cycle processing in accordance with the requirements (without turntable).
Category:
Description
Main technical parameters:
| Items and specifications | Parameters |
| Working range | φ2~ φ 12.7mm |
| Dimension of plates | ODφ660*IDφ420*W80mm |
| Dimension of wheels | ODφ660*IDφ410*W60mm |
| Speed of main shaft | 40~130 r/min(frequency conversion) |
| Ball load capacity | 120KG |
| Main motor power | 7.5kW |
Main structural features:
1.Vertical layout, large cycle machining;
2.Suitable for the hard grinding process;
3.The rotation of main shaft and turntable adopt frequency conversion speed regulation;
4.With hydraulic driven and wheel dresser;
5.Hydraulic drive pressure, mechanical pressure preservation by compression spring and constant pressure nut locking;
6.Adopt small cycle processing in accordance with the requirements (without turntable).
