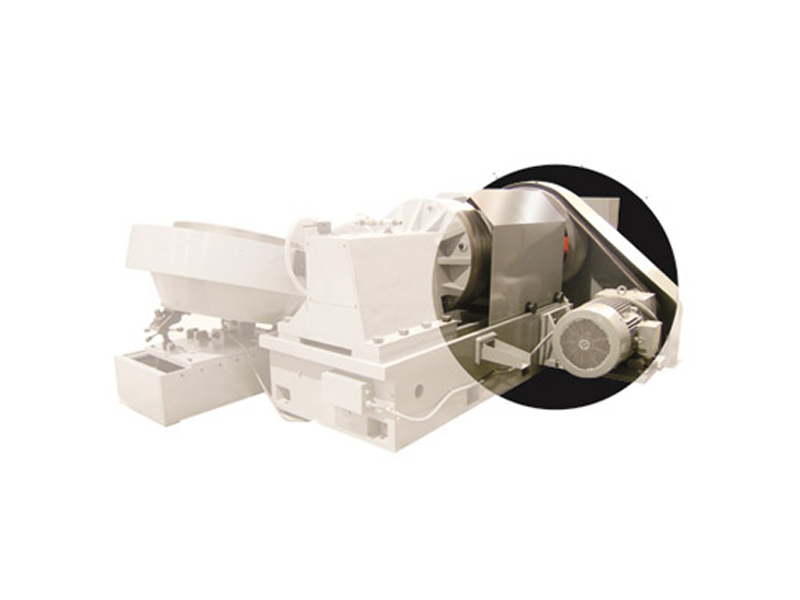

3M4980C Horizontal steel ball lapping machine
Category:
Description
Main technical parameters:
| Items and specifications | Parameters |
|
Working range |
φ5~ φ30mm |
|
Dimension of ball plate |
ODφ800×IDφ314×W90mm |
|
Speed of main shaft |
40~130 r/min(frequency conversion) |
|
Ball load capacity |
650kg |
|
Main motor power |
45kW |
Main structural features:
1.Horizontal layout, large cycle machining;
2.Suitable for the flashing process;
3.Adopt open structure, the oil cylinder is positioned and the rotating plate is moving pressurize;
4.The rotation of main shaft and turntable adopt frequency conversion speed regulation;
5.Hydraulic drive pressure, normally open type hydraulic station;
6.Side mounted tilted turntable;
7.The main motor is mounted on a self made gearless reduction gearbox, and the main motor transfers power to the main shaft through one pairs of belt pulley, one pair of gear and one pair of belt pully;
8.The opening size of the ball plate, the positioning size of the ball plate, types of turntable (plate or incline), the amount of ball loading, the spindle speed and the power of the main motor can be customized according to the requirements of the customers.
