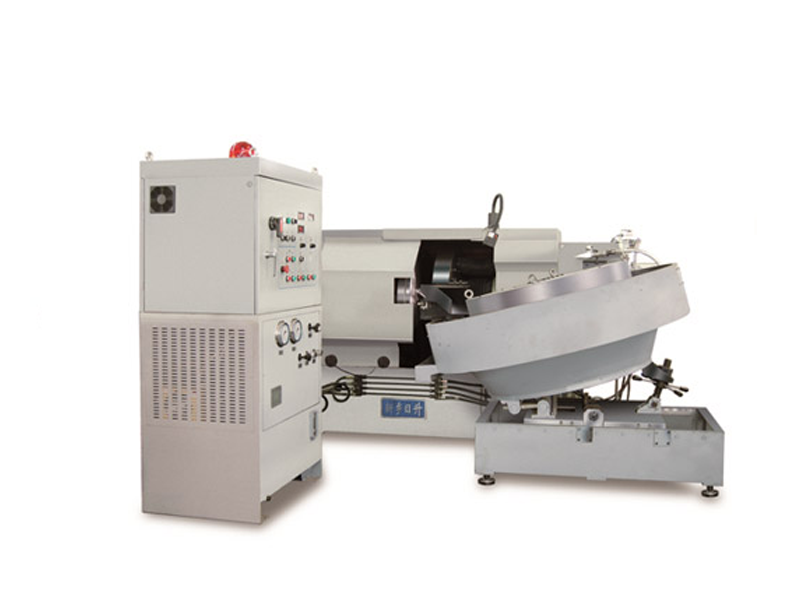

3M4680C Horizontal steel ball grinding machine
Category:
Description
Main technical parameters:
| Items and specifications | Parameters |
|
Working range |
φ5~ φ30mm |
|
Dimension of fixed plate |
ODφ800×IDφ360×W90mm |
|
Dimension of grinding wheel |
ODφ800×IDφ360×W100mm |
|
Speed of main shaft |
40~120 r/min(frequency conversion) |
|
Ball load capacity |
400kg |
|
Main motor power |
22kW |
Product structural features:
1.Horizontal layout, large cycle machining;
2.Suitable for the hard grinding process;
3.Adopt whole bridge closed frame structure, fixed plate moving pressure;
4.Use upper and lower guide rod positioning and an oil cylinder eccentric pressurizing structure;
5.The rotation of main shaft and turntable adopt frequency conversion speed regulation;
6.Hydraulic drive pressure, normally open type hydraulic station;
7.With hydraulic drive grinding wheel dresser;
8.Side mounted tilted turntable;
9.The main motor is mounted on a self made gearless reduction gearbox, and the main motor transfers power to the main shaft through two pairs of belt pulleys;The opening size of the ball plate, the positioning size of the ball plate, types of turntable (plate or incline), the amount of ball loading, the spindle speed and the power of the main motor can be customized according to the requirements of the customers.
