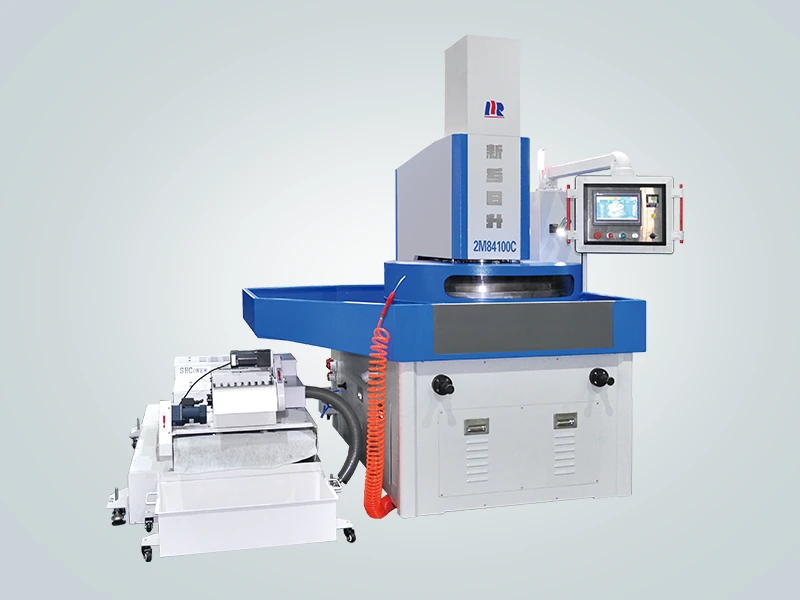

2M84100C double-sided grinding bed
Category:
Description
Application areas
It is suitable for double-end precision grinding of precision bearings, hydraulic motors, automobile steering pumps, RV reducers, seals, carbide tools, molds, ceramic valve cores, silicon carbide and other parts.
Machine features.
1. High strength cast iron bed and swing arm system.
2. The fault self-identification system is convenient to find the cause and quickly solve the abnormality.
3. Pre-monitoring function before grinding, automatic alarm for abnormal part thickness.
4, man-machine interface control, can store 30 different grinding parameters, easy to call.
5, six pressure and speed setting, automatic conversion when grinding.
6. Double-sided simultaneous grinding with C8N/diamond grinding wheel.
7. Real-time monitoring of thickness size and grinding allowance.
Main technical parameters
| Grinding wheel or disc size | 970 x 380 x 55mm (CBN thickness is 5) |
| Maximum diameter of workpiece | 325mm |
| Maximum machining height | 100mm |
| Upper cover motor power | 7.5kW |
| Speed range | 5 to 60 r/min |
| Lower Panel RMP | 7.5 kW |
| Speed range | 5 to 60 r/min |
| Inner ring motor power | 3 kW |
| Speed range | 5 to 40 r/min |
| Machine inlet pressure | 0.6MPa |
| Overall dimensions of the machine | 3060x2290x2590 |
| Machine weight | 5000 |
